zc-controller
Dali-2 Application controller
Lägg till en bevakning så meddelar vi dig så snart varan är i lager igen.
zc-controller

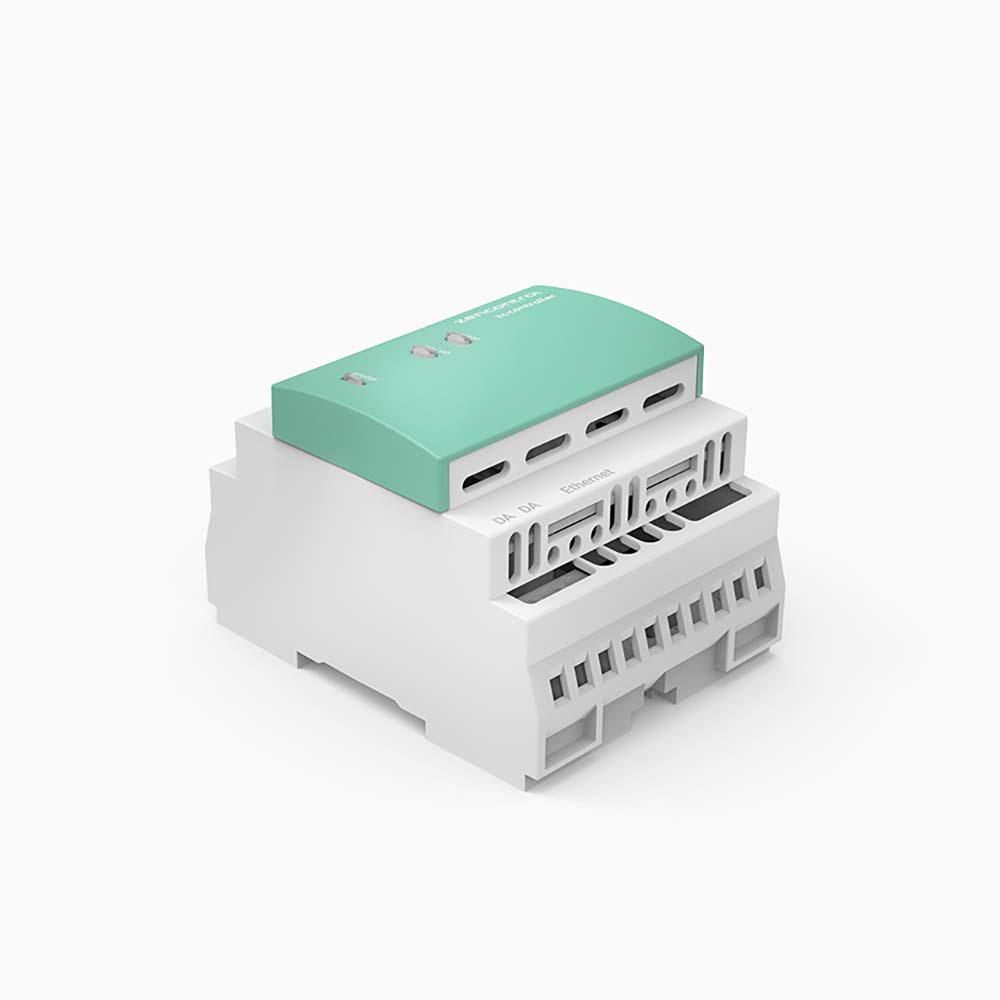

Dali-2 Application controller
Dali-2 Application controller för DIN montage.
Denna produkten lämpar sig väl till en traditionell installation som utgår från elcentralerna. Detta är en skalbar produkt och ansluts enkelt med en nätverkskabel för att bygga ett större system som även kan kombineras med Zencontrols room controllers.
Product range | |
| Order code | zc-controller |
|---|---|
| Description | DALI application controller and Ethernet DALI gateway |
Features
- DALI compliant application controller
- Compliant to IEC 62386-103 Ed 2.0
- Compatible with DALI devices
- Protected against DALI over voltage
- LED indicators for system status
- Reinforced insulation between DALI, mains supply and Ethernet
- 10/100 TCP/IP Ethernet compatible w. standard IT switches and equipment
- Suitable for switchboard mounting on standard DIN rail
- Suitable for 1 DALI line of up to 64 devices and 63 control devices
- Automatic DALI scanning for device changes
- Automatic DALI short addressing
Downloads
Dimensions (mm)
Specifications | |
| Supply voltage | 230 V ~ 50 Hz |
|---|---|
| Control system | DALI-2 |
| DALI line current | 2 mA |
| Ethernet | 10/100 TCP/IP Ethernet |
| Wiring | 1-4mm2 Strip 6-7mm |
| Operating temperature | 0 to 45°C |
| Material | PC |
| Classification | Class II |
| Mounting | DIN rail (35mm) |
| Ingress protection | IP20 |
| Compliance standards | IEC 61347-2-11
IEC 60950-1
CISPR 15
CISPR 22
EN 55015
EN 55022
IEC 62386-301 Ed 2.0
EMC-2004/108/EC LVD-2006/95/EC |
Accessories range | |
| Order code | Description |
|---|---|

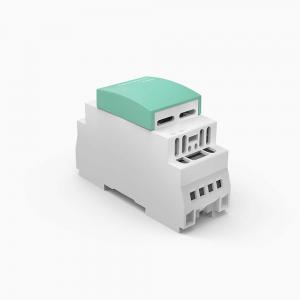

| zc-psu | DALI power supply |
Notice
Requires external DALI power supply such as zc-psu
